Kandi Kruiser OEM Hydraulic Brake Control

$18.98
SKU: 3506020YX-101
 More payment options

KANDI PARTS : GOLF CART : KRUISER 2 & 4 Passenger Models

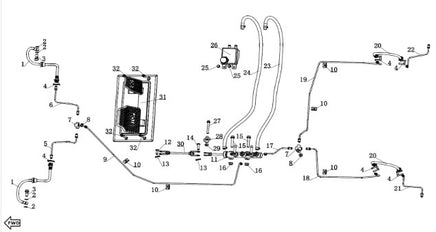

HYDRAULIC BRAKE CONTROL

Ref# Part number
1

3506020YX-101



Brake Hose Assembly (Front)



2

3506117YX-101

Sealing Gasket

3

3506116YX-101

Hollow Bolt

4

3506114YX-101

Hose Clamp

5

M1204-3506031

Brake Line (Front Driver Side)

6

M1204-3506041

Brake Line (Front Passenger Side)

7

L5201-3506115

Tee Adapter

8

Q33008T2F6

Hexagonal flange lock nut M8×1.25

9

M1204-3506051



Brake Line (Connection Line 1)



10

M1204-3506113

Brake Line Mounting Clip

11

L5201-3510010A

Brake Master Cylinder Assy

12

Q510B0822F3

Clevis Pin - 8×22

13

Q50108F3

Cotter Pin

14

Q1851060TF6

Hexagon flange bolt M10×1.25×60

15

Q33110T13F6

Hexagonal flange lock nut M10×1.25

16

M1204-3506052



Brake Line (Connection Line 2)



17

M1204-3506032

Brake Line (Rear Driver Side)

18

M1204-3506042

Brake Line (Rear Passenger Side)

19

3506070YX-101



Brake Hose Assembly (Rear)



20

M6204-3506050

Brake Line (Rear Driver Side)

21

M6204-3506060

Brake Line (Rear Passenger Side)

22

M1204-3510021

Brake Fluid Reservoir Hose 1

23

M1204-3510022

Brake Fluid Reservoir Hose 2

24

Q1840616T1F33

Hexagon flange bolt M6×16

25

L5201-3510020

Brake Fluid Reservoir

26

Q1840860T1F33



Hexagon Flange Bolt M8×1.25×60



27

DM6204-3510020 (27)

Connecting Plate for Brake Master Cylinder

28

M6204-3510015

Brake Master Cylinder Connecting Rod

29

M1204-3504010

Combined Pedal Assy

11

L5201-3510010A-Ring

O-Ring, Brake Master Cylinder


14

Q510B0830F3

Pin Shaft.8×30

14- day return policy. Customer is responsible for return shipping and 35% restocking fee. Merchandise must be un-used or refund will not be processed. Some parts may be out of stock or on backorder, if this happens you will be notified via contact method you choose at checkout.**
