KANDI Parts : UTV : Cowboy e10K

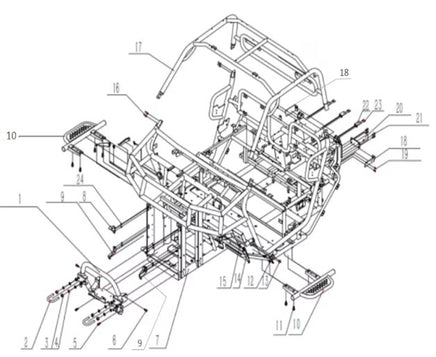

FRAME WITHOUT BENT PIPE ASSEMBLY
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
DC5013000
Front Bumper Assembly
|
||
| 2 |
DC2803092
Tow D-Ring
|
||
| 3 |
Q340B16
Hexagon Nut
|
||
| 4 |
Q40416
Lightweight Spring Washer
|
||
| 5, 6 |
Q1841025
Hexagon Flange Bolt - M10×25
|
||
| 7 |
DC5010000 Frame Assembly |
||
| 8 |
DC5018001A
Upper Bracket (Front Bumper Upper Trim)
|
||
| 9a |
DC5018054
Lower Bracket (Front Bumper Upper Trim)
|
||
| 9b |
DC5018055
Lower Bracket (Front Bumper Upper Trim) (Symmetrical Parts)
|
||
| 10a |
DC5017000
Running Board (Driver Side)
|
||
| 10b |
DC5017100
Running Board (Passenger Side)
|
||
| 11 |
Q1841225 Hexagon Flange Bolt |
||
| 12a |
DC5512167
Front Fender Mounting Bracket (Driver Side)
|
||
| 12b |
DC5512166
Front Fender Mounting Bracket (Passenger Side)
|
||
| 13 |
Q1840630 Hexagon Flange Bolt |
||
| 14 |
DC5512168
Front Fender Trim Bracket (Driver and Passenger Sides)
|
||
| 15 |
Q1840630 Hexagon Flange Bolt |
||
| 16 |
Q218B1025
Allen Head Screw
|
||
| 17 |
DC5700500
Roof Frame Assembly
|
||
| 18a |
DC5018046
Lower Bracket (Rear Bumper, Driver Side)
|
||
| 18b |
DC5015058 Lower Bracket (Rear Bumper, Passenger Side) |
||
| 19 |
Q1840630 Hexagon Flange Bolt |
||
| 20 |
DC5016000
Trailer Hitch Receiver Assembly
|
||
| 21 |
Q1841025
Hexagon Flange Bolt - M10×25
|
||
| 22 |
DC5018045
Upper Bracket (Rear Bumper)
|
||
| 23 |
Q1840620 Hexagon Flange Bolt |
||
| 24 |
Q32006 Hexagon Flange Nut |
