Kandi Kruiser OEM Rear Axle, Motor, & Suspension Assy

Name: Kandi Kruiser OEM Rear Axle, Motor, & Suspension Assy
Brand: Canyon Lake Mobile
SKU: Q33112T13F6
Price: 3.19 USD
Availability: InStock

$3.19

SKU: Q33112T13F6

Part

Qty

← Previous Product Next Product →

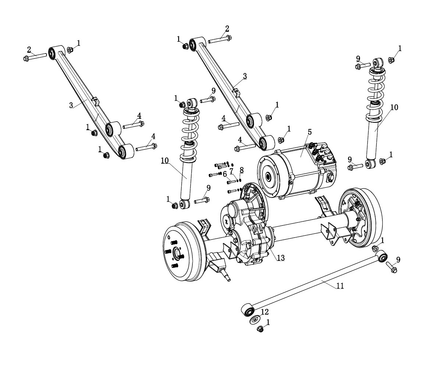

REAR SUSPENSION

Kandi Kruiser (6 Passenger Models)

Ref#	Part Number
1	Q33112T13F6 Lock Nut M12×1.25
2	Q1851295TF6 Hexagon Flange Bolt.M12×1.25×95
3	M6202-3301010YZ Rear Trailing Arm Assy
4	Q1851285TF6 Hexagon Flange Bolt.M12×1.25×85
5	M1203-2103010 Motor Assy
6	1/4-20*1-1/4 Hex Bolts
7	Q40306F33 Spring Washer
8	Q40106T16F33 Flat Washer
9	Q1851255TF6 Hexagon Flange Bolt.M12×1.25×55
10	M1205-2915010 Rear Shock Absorber Assy
11	M6206-3301120 Rear Axle Cross Brace Assembly
12	2906017YX-101 Shim
13	M6205-3301015 Rear Axle With Brake Assembly

14- day return policy. Customer is responsible for return shipping and 35% restocking fee. Merchandise must be un-used or refund will not be processed.
