These parts are designed for 2, 4 & 6 Passenger Kandi Kruiser models.

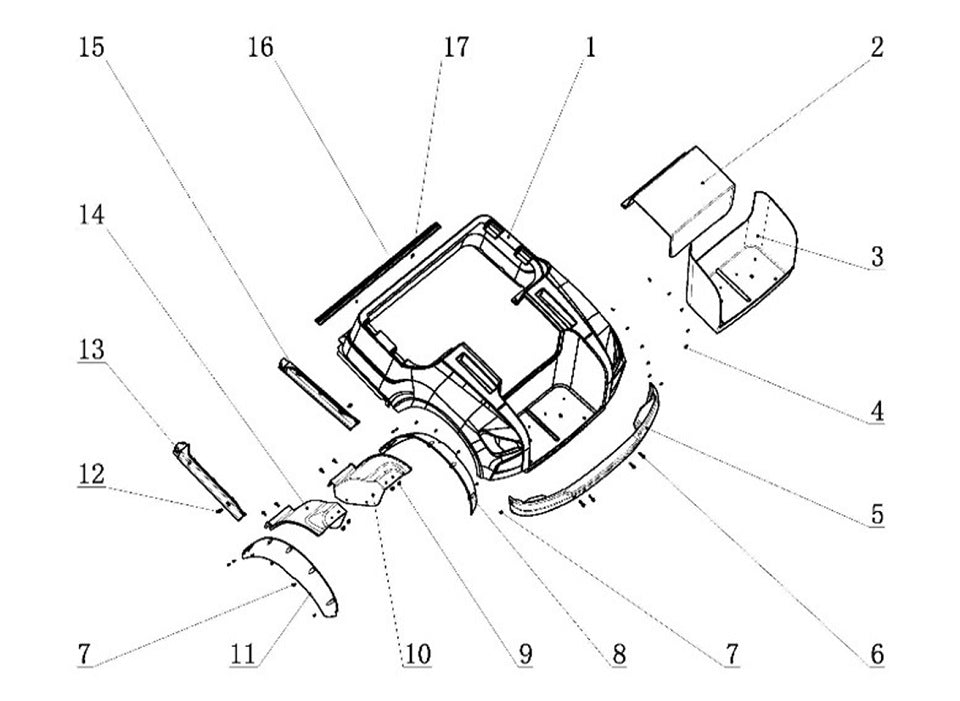

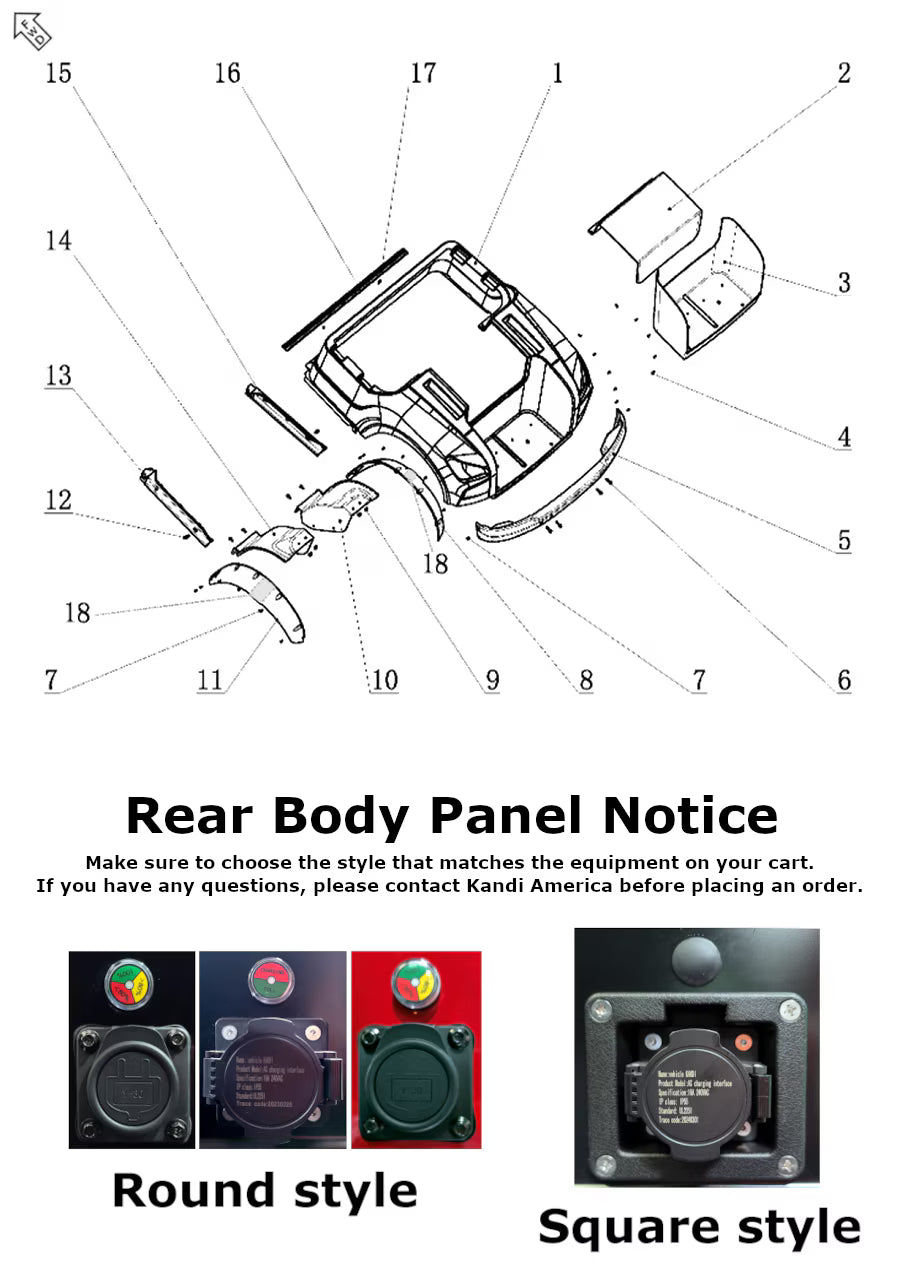

REAR TRIM
| Ref# | Part | ||
|---|---|---|---|
| 1-Blue |
YQM1204-5006311-BLUE
Rear Body Panel - Blue
|
||
| 1-Black |
YQM1204-5006311-BLACK
Rear Body Panel - Black
|
||
| 1-Red |
YQM1204-5006311-RED
Rear Body Panel - Red
|
||
| 1-Silver |
YQM1204-5006311-SILVER
Rear Body Panel - Silver
|
||
| 1-Matte Black |
YQM1204-5006311-MATTE-BLACK
Rear Body Panel - Matte Black
|
||
| 1-White |
YQM1204-5006311-WHITE
Rear Body Panel - White
|
||
| 2 |
M1203-5006313
Motor Controller Cover
|
||
| 3 |
M1203-5006312
Rear Storage Compartment Liner
|
||
| 4 |
Q2714213F33
Phillips Pan Head Self-Tapping Screw - ST4.2×13
|
||
| 5 |
M1203-5006321 Rear Bumper |
||
| 6 |
Q2140635F33 Phillips Pan Head Screw - M6×1×35 |
||
| 7 |
Q2714816F33
Phillips Pan Head Self-Tapping Screw - ST4.8×16
|
||
| 8 |
M1203-5006354
Fender Trim - Glossy Black (Rear Passenger Side) (Last Few in stock)
|
||
| 8 |
M1203-5006354AJ Fender Trim - Matte Black (Rear Passenger Side) |
||
| 9 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 10 |
M1204-5006411 Fender Splash Shield (Rear Passenger Side) |
||
| 11 |
M1203-5006353
Fender Trim - Glossy Black (Rear Driver Side) (Last Few in stock)
|
||
| 11 |
M1203-5006353AJ Fender Trim - Matte Black (Rear Driver Side) |
||
| 12 |
Q2140625F33
Phillips Pan Head Screw - M6×1×25
|
||
| 13 |
M1204-5006233 Side Trim (Rear Driver Side) |
||
| 14 |
M1204-5006412 Fender Splash Shield (Rear Driver Side) |
||
| 15 |
M1204-5006244 Side Trim (Rear Passenger Side) |
||
| 16 |
M1204-5006251 Front Trim for Rear Body Panel |
||
| 17 |
Q2540620T9F30 Flat Head Screw - M6×1×20 |
||
| 18 |
FTH050B
Red Reflective Sticker
|
