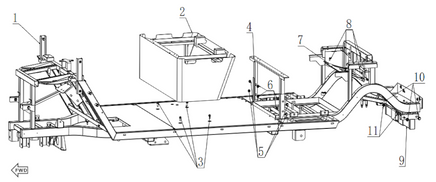

KANDI PARTS : GOLF CART : KRUISER 6P
FRAME
Ref# | Part Number | ||
---|---|---|---|
1 |
PM1205-2801010 Frame Assy 6P |
||
1 |
PM1205-2800330 Front Seat Frame Assy |
||
3 |
Q1840820T1F6 Hex flange bolt M8×1.25×20 |
||
4 |
M1204-2800310 Seat Beam Assy |
||
5 |
Q1840816T1F6
Hexagon flange bolt M8×1.25×16
|
||
6 |
Q33008T2F6 Hexagonal flange lock nut M8×1.25 |
||
7 |
M1203-2801551H Motor controller mounting components |
||
8 |
Q1840616T1F33 Hexagon flange bolt M6×16 |
||
10 |
Q1851050TF6 Hex flange bolt M10×1.25×50 |
||
11 |
Q33110T13F6 Hexagonal flange lock nut M10×1.25 |
