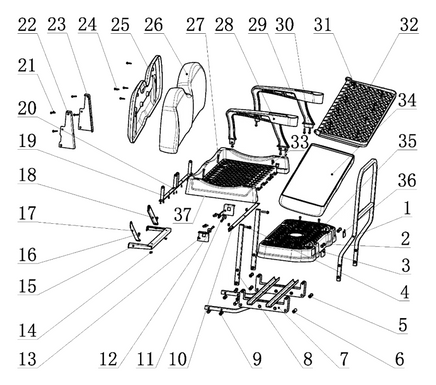

BACK SEAT ASSY
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
M1203-2800150 Handrail Of Back Seat |
||
| 2 |
Q1851090TF6 Hexagon flange bolt M10×1.25×90 |
||
| 3 |
M1204F-4135010 Retro-Reflection, Driver |
||
| 4 |
Q1851045TF6 Hex flange bolt M10×1.25×45 |
||
| 5 |
Q32310T13F6 Hexagon flange nut M10×1.25 |
||
| 6 |
Q1851070TF6 Hex flange bolt M10×1.25×70 |
||
| 7 |
DM1203-2800130 Footboard Stringer Assy |
||
| 8 |
PM1203-2800123 Back-Beam Crutch Of Rear Seat |
||
| 9 |
Q1851050TF6 Hex flange bolt M10×1.25×50 |
||
| 10 |
M1203-2800121 Back-Beam Of Rear Seat |
||
| 11 |
M1203-2800126 Armrest Of Back Seat Bracket, Passenger |
||
| 12 |
M1203-2800127
Installing-Base Of Rear Seat(unavailable)
|
||
| 13 |
M1203-2800125 Armrest Of Back Seat Bracket ,Driver |
||
| 14 |
Q32008T2F33
Hexagon flange nut M8×1.25
|
||
| 15 |
M1203-2800110 Front-Beam Of Rear Seat |
||
| 16 |
Q32008T2F33
Hexagon flange bolt M8×1.25×16
|
||
| 17 |
M1203-2800115H Front-Beam Of Rear Seat Brace, Driver |
||
| 18 |
M1203-2800116H Front-Beam Of Rear Seat Brace, Passenger |
||
| 19 |
Q2205525F33 Self-Tapping Screw ST5.5×25 |
||
| 20 |
M1203-2800160 Safety Belt Bracket Assy |
||
| 21 |
Q1840630T1F33
Hexagon flange bolt M6×1×16
|
||
| 22 |
M1203-2801911 Backrest Mounting Bracket, Driver |
||
| 23 |
M1203-2801912 Backrest Mounting Bracket, Passenger |
||
| 27 |
Q218B0850T1F33 Hexagon socket head screw M8×1.25×50 |
||
| 28 |
M1204F-7506010 Armrest Of Back Seat, Driver |
||
| 29 |
M1204F-7506020 Armrest Of Back Seat, Passenger |
||
| 30 |
Q1840830T1F6 Hexagon flange bolt M8×1.25×30 |
||
| 31 |
M1203-7501011
Flip Seat Mounting Board
|
||
| 31-2 |
M1203-7501012
Door, Flip Seat Mounting Board (No Lock)
|
||
| 32 |
M1204F-7501013 Flip Board Of Rear Seat |
||
| 33 |
Q218B0825T1F33 Hexagon socket head screw M8×1.25×25 |
||
| 35 |
M1203-7501014 Footboard |
||
| 36 |
M1204F-4135020 Retro-Reflection, Passenger |
||
| 37 |
M1203-5006628 Flip Board Lock Catch Assy |
