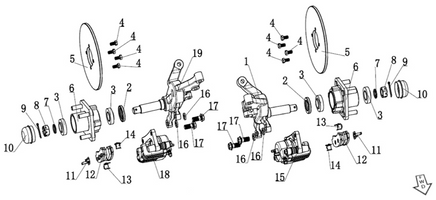

BRAKE CALIPER
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
M6206-3001015 Front Knuckle. Driver Side and Spindle Assembly |
||
| 2 |
M6203-3001019 Grease Seal |
||
| 3 |
M6203-3001016 Bearing |
||
| 4 |
Q146B0830TF6 Hexagon Flange Bolt M8×1.25×20, Brake Disc |
||
| 5 |
M6204-3001020 Brake Disc |
||
| 6 |
M6203-3001017 Hub ASSY |
||
| 7 |
M6203-3001018 Washer |
||
| 8 |
Q38312TF3 Hex Nut.M20x1.5 |
||
| 9 |
Q5000436 Split Pin |
||
| 10 |
M6203-3001021 Seal End Cap |
||
| 11 |
M6204-3501023 Spring 1 |
||
| 12 |
M6204-3501021 Brake Pad.(2-pad set) |
||
| 13 |
M6204-3501024 Spring 2 |
||
| 14 |
M6204-3501025 Spring 3 |
||
| 15 |
M6204-3501015 Front Brake Caliper.Driver(Pad Not included) |
||
| 16 |
Q40312F6 Spring Washer M12 |
||
| 17 |
Q151B1230TF6 Bolt M12x1.25x30 |
||
| 18 |
M6204-3502015 Front Brake Caliper.Passenger(Pad Not included) |
||
| 19 |
M6206-3001025 Front Knuckle.Passenger Side and Spindle Assembly |
