4 Passenger Kandi Element OEM Electrical Components

$47.99
SKU: M1204-4005020
← Previous Product Next Product →

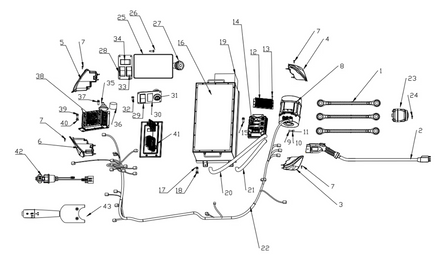

ELECTRICAL

Ref# Part
1

M1204-4005020

Motor Wire
2

M1104-2107020



Charging Cable for Lithium Battery


3

M1204F-4133010



Taillight (Driver Side)
(Supersedes M1203-4133010)
Taillight version comparison


4

M1204F-4133020



Taillight (Passenger Side)
(Supersedes M1203-4133020)
Taillight version comparison


5

M1203-4121020

Headlight (Passenger Side)

6

M1203-4121010

Headlight (Driver Side)
7

Q32405T11F33



Hexagon Serrated Flange Nut M5 × 0.8


8

M1203-2103010

Drive Motor Assembly 5KW
9

1/4-20*1-1/4



Allen Head Bolt - 1/4-20*1-1/4


10

Q40306F33

Spring Washer
11

Q40106T16F33



Washer


12

M1104-2110010



DC to DC Converter (Call First)


13

Q2140512T1F33



Phillips Pan Head Screw - M5×0.8×12


14

M1104F-2142010LL



Motor Controller Assembly


15

Q1840616T1F33



Hexagon Flange Bolt - M6×1×16


17

Q1840820T1F6



Hexagon Flange Bolt - M8×1.25×20


18

Q33008T2F6



Hexagon Flange Lock Nut - M8×1.25


20

M1104-4005012



Battery Cable - Red


21

M1104-4005011



Battery Cable - Black


22

M1104F-4002010-C



Wiring Harness (2P 4P LCD-Lithium 7'')


23

M1124-3776010



Backup Camera (Call before ordering)


24

Q2140206



Bolt M2, Backup Camera
(Call before ordering)


26

Q2140512T1F33



Phillips Pan Head Screw - M5×0.8×12


27

M1224-3792050

USB Output Socket
28

M1203-3792040



Hazard Warning Switch


29

M1203-3792010

Gear Switch
30

M1204FQ-5006160



Switch Panel Plate


31

M1203-3704010

Key Switch
32

Q4400311



Blind Rivet


33

M1203-3792030

Spotlight Switch
34

M1204FD-3792060



Winch Switch



35

M1203-3721010

Horn
36

M1203-3819010

Buzzer
37

Q1840616T1F33



Hexagon Flange Bolt - M6×1×16


38

M1104F-2107010



Charger Assembly (4P Lithium with 7" Screen, Element, 4PRO, 4PROF, GOAT)


39

Q1840616T1F33



Hexagon Flange Bolt - M6×1×16


40

Q32006T2F33



Hexagon Flange Nut - M6×1


41

M1204-3504010HX

Combined Pedal Assembly
42

M1104-2107030

Charging Socket, Lithium
43

M1224-3774010



Turn Signal Combination Switch

Click here for more info



M1104-3703010



12V Starting Battery
