Kandi Lucky T9 OEM Front Suspension Components

$3.99
SKU: Q5002528
← Previous Product Next Product →

UTV : Lucky T9

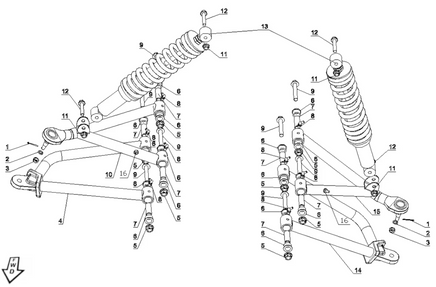

FRONT SUSPENSION

Ref# Part Price Qty
1

Q5002528



Cotter Pin



 $2.00

2

Q40312

Spring Washer - M12

 $1.69

3

Q387B12



Slotted Hexagon Nut (Thin) - M12×1.25



 $2.00

4

DA2901200



Lower Swing Arm Assembly (Front Driver Side)



 $53.00

5

Q33112



Hexagon Flange Locking Nut - M12×1.25



 $3.19

6

DA2901130



Nylon Liner



 $3.00

7

DA2901120



Swing Arm Pin



 $3.00

8

Q700B08



Straight-Through Grease Nozzle


9

Q1851290



Hexagon Flange Bolt (Fine Thread) - M12×1.25×90


10

DA2901100



Upper Swing Arm Assembly (Front Driver Side)


11

Q33010



Hexagon Flange Lock Nut - M10


12

Q1841055



Hexagon Flange Bolt - M10×55


13

DA2905000



Front Shock Absorber Assembly


14

DA2901400



Lower Swing Arm Assembly (Front Passenger Side)


15

DA2901300



Upper Swing Arm Assembly (Front Passenger Side)


16

Q1990616



Projection Weld Bolt - M6×16
