UTV : Lucky T9

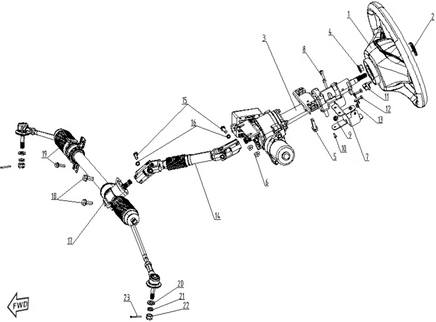

STEERING SYSTEM
| Ref# | Part | Price | Qty |
|---|---|---|---|
| 1 |
DC3402100
Steering Wheel Assembly
|
||
| 2 |
DA3402130
Steering Wheel Center Cap (KANDI Logo)
|
||
| 3 |
DB3418100
Steering Column Asssembly (with EPS)
|
||
| 4 |
Q32112
Serrated Hexagon Flange Lock Nut
|
||
| 5 |
Q1840830
Hexagon Flange Bolt - M8×1.25×30
|
||
| 6 |
Q32008
Hexagon Flange Nut
|
||
| 7 |
DA3418110
Steering Column Cover Bracket Assembly
|
||
| 8 |
Q218B0625
Allen Head Cap Screw
|
||
| 9 |
Q320B06
Hexagon Flange Nut
|
||
| 10 |
Q2140412
Phillips Pan Head Screw - M4×0.8×12
|
||
| 11 |
DA3721031
Horn Contact
|
||
| 12 |
Q150B0625
Hexagon Bolt
|
||
| 13 |
Q320B06
Hexagon Flange Nut
|
||
| 14 |
DA3404100
Connecting Shaft Assembly
|
||
| 15 |
Q150B0825
Hexagon Bolt
|
||
| 16 |
Q40308 Spring Washer |
||
| 17 |
DA3401100
Rack and Pinion with Tie Rod Assembly
|
||
| 18 |
Q1841025
Hexagon Flange Bolt - M10×25
|
||
| 19 |
Q1840825 Hexagon Flange Bolt |
||
| 20 |
Q40112
Washer
|
||
| 21 |
Q40312 Spring Washer - M12 |
||
| 22 |
Q387B12
Slotted Hexagon Nut (Thin) - M12×1.25
|
||
| 23 |
Q500B3228
Cotter Pin
|
