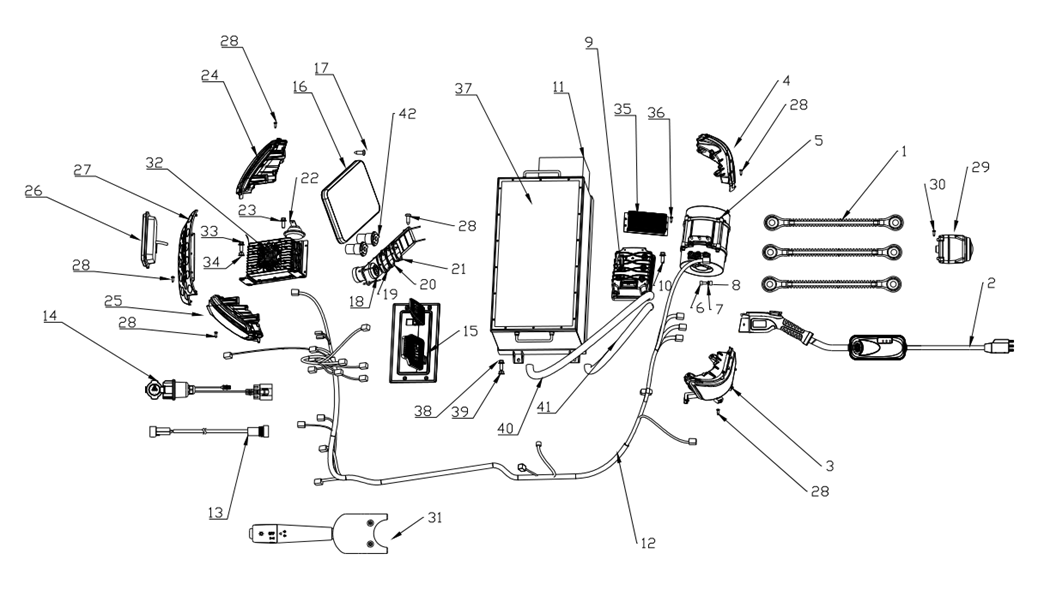

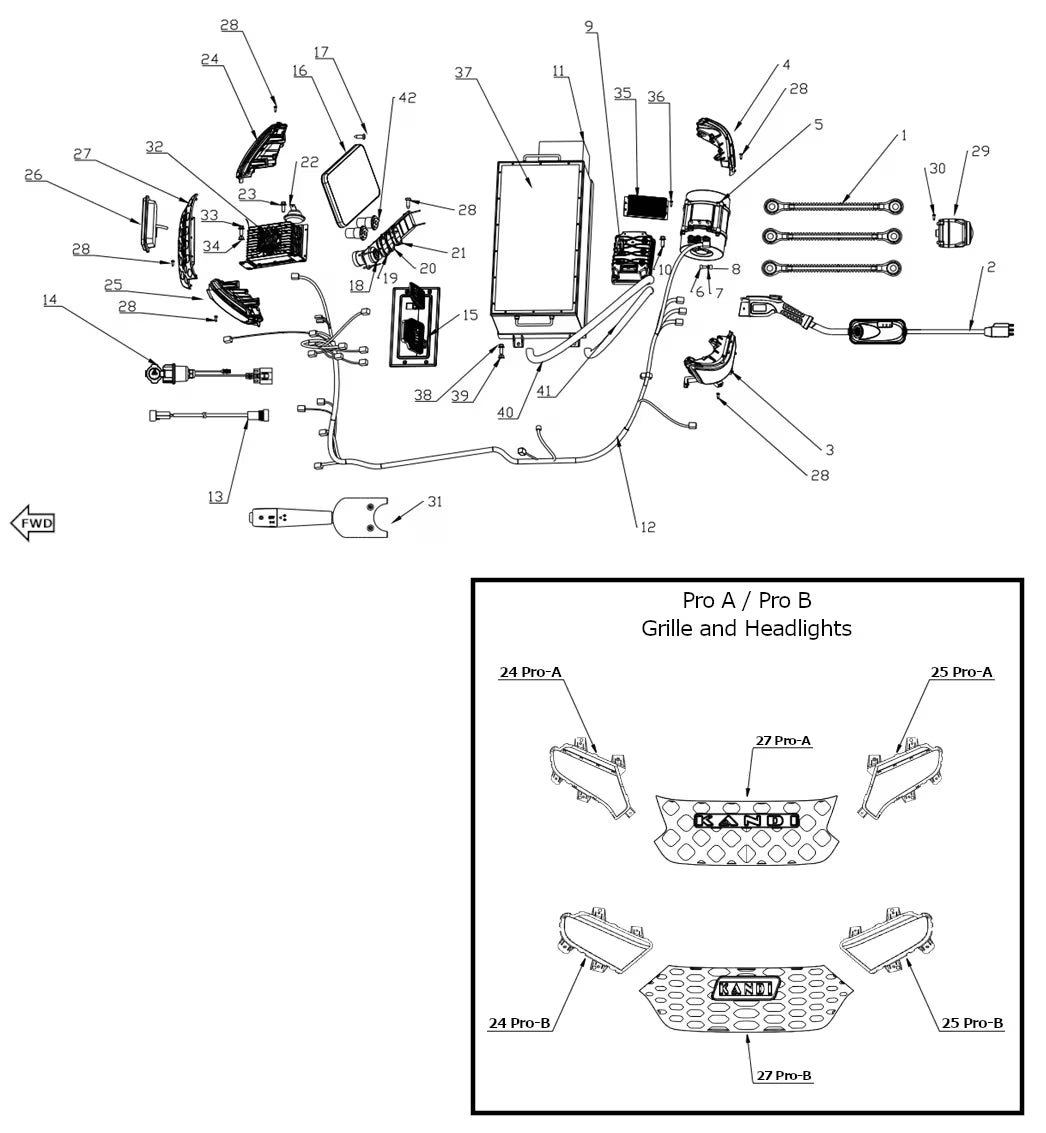

ELECTRICAL (PRO) Kandi Kruiser PRO 4 passenger A & B Models
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
M1204-4005020 Motor Wire |
||
| 2 |
M1104-2107020
Charging Cable for Lithium Battery
|
||
| 3 |
M1224-4133010
Taillight PRO (Driver Side)
|
||
| 4 |
M1224-4133020
Taillight PRO (Passenger Side)
|
||
| 5 |
M1203-2103010
Drive Motor Assembly
|
||
| 6 |
1/4-20*1-1/4
Allen Head Bolt - 1/4-20*1-1/4
|
||
| 7 |
Q40306F33 Spring Washer |
||
| 8 |
Q40106T16F33
Washer
|
||
| 9 |
M1104F-2142010LL
Motor Controller Assembly (4P Lithium-ion, 7in Screen)
|
||
| 10 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 11 |
M1104-3703010
12V Starting Battery
|
||
| 12 |
M1124A-4002010
Wiring Harness
|
||
| 14 |
M1104-2107030
Charging Socket (Lithium-ion)
|
||
| 15 |
M1204-3504010
Combined Pedal Assembly
|
||
| 16 |
M1224-3820010
Meter Assembly PRO (10in Screen)
|
||
| 18 |
M1203-3704010
Key Switch
|
||
| 19 |
M1224-3792010 Gear Switch |
||
| 20 |
M1224-3792030
Spotlight Switch
|
||
| 21 |
M1224-3792040
Hazard Warning Switch
|
||
| 22 |
M1203-3721010
Horn
|
||
| 23 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 26 |
M1124-4121030
Spotlight PRO
|
||
| 28 |
Q2714213F33
Phillips Pan Head Self-Tapping Screw - ST4.2×13
|
||
| 29 |
M1124-3776010
Backup Camera (Call First)
|
||
| 31 |
M1224-3774010
Turn Signal Combination Switch PRO
|
||
| 33 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 34 |
Q32006T2F33
Hexagon Flange Nut - M6×1
|
||
| 35 |
M1104-2110010
DC to DC Converter (Call First)
|
||
| 36 |
Q2140512T1F33
Phillips Pan Head Screw - M5×0.8×12
|
||
| 38 |
Q1840820T1F6
Hexagon Flange Bolt - M8×1.25×20
|
||
| 39 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
||
| 40 |
M1104-4005012
Battery Cable - Red
|
||
| 41 |
M1104-4005011
Battery Cable - Black
|
||
| 42 |
M1224-3792050 USB Output Socket |
