REAR AXLE AND BRAKE diagram SALE

4 Passenger Kandi Kruiser Pro Forward OEM Rear Axle & Brake

$1,498.00 $1,789.99
SKU: M1105F-3301016
← Previous Product Next Product →

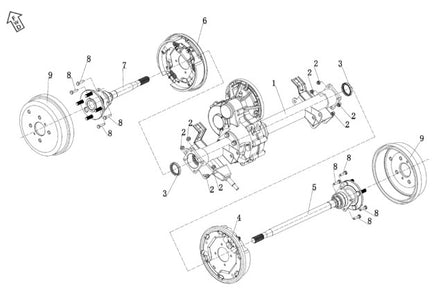

REAR AXLE AND BRAKE

Ref# Part Price
1

M1105F-3301016

Reducer With Axle Housing Assembly
2

Q32808T2F3



Hexagon Lock Nut with Nylon Insert - M8×1.25
3

M1204-3301019



Half Shaft Seal Ring


4

M1204-3502200



Brake Assembly (Rear Passenger Side)


5

M1105F-3301018



Axle Assembly (Rear Passenger Side)


6

M1204-3502100



Brake Assembly (Rear Driver Side)


7

M1105F-3301017



Axle Assembly (Rear Driver Side)


8

Q1420830T1F3



Hexagon Bolt - M8×1.25×30


9

M1204-3502030

Rear Brake Drum
L1/R1

M1204-3502104



Brake Shoe-L1/R1


R2

M1204-3502211



Brake/Parking Shoe-R2



L2

M1204-3502111



Brake/Parking Shoe-L2
