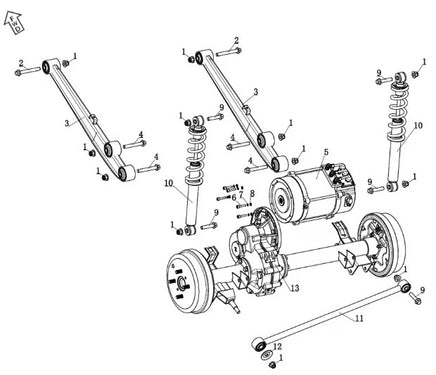

REAR AXLE, MOTOR & SUSPENSION diagram SALE

4 Passenger Kandi Kruiser Pro FORWARD OEM Rear Axle, Motor, & Suspension

$4.29
SKU: Q33112T13F6
← Previous Product Next Product →

REAR AXLE, MOTOR & SUSPENSION

Ref# Part
1

Q33112T13F6



Hexagon Flange Lock Nut - M12×1.25


2

Q1851295TF6



Hexagon Flange Bolt - M12×1.25×95


3

M6202-3301010

Rear Trailing Arm Assembly - 4P
4

Q1851285TF6



Hexagon Flange Bolt - M12×1.25×85


5

M1105F-2103010

Drive Motor Assembly 7kw
6

1/4-20*1-1/4



Allen Head Bolt - 1/4-20*1-1/4


7

Q40306F33

Spring Washer
8

Q40106T16F33



Washer


9

Q1851255TF6



Hexagon Flange Bolt - M12×1.25×55


10

M1124-2915010

Rear Shock Absorber Assembly - 4P
11

M6206-3301120



Panhard Rod


12

2906017YX-101



Spacer Shim


13

M1105F-3301015



Rear Axle with Brake Assembly
