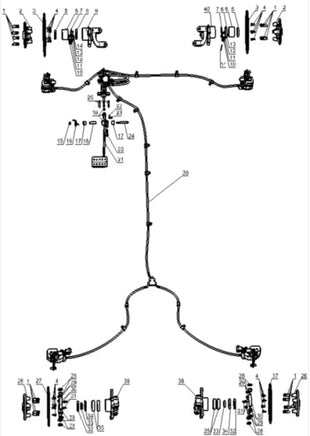

BRAKING SYSTEM
| Ref# | Part | ||
|---|---|---|---|
|
DA3503012
Front Brake Pad-UTV
|
|||
|
DA3503032
Rear Brake Pad-UTV
|
|||
| 1 |
DA3501112
Wheel Hub Bolt - M12×1.25
|
||
| 2 |
DA3501111
Front Wheel Hub
|
||
| 3 |
DA3501120
Front Brake Rotor
|
||
| 4 |
DA3501121
Brake Rotor Bolt - M8×20
|
||
| 5 |
DA3501134
Front Wheel Hub Grease Seal 2
|
||
| 6 |
DA3501132 Front Wheel Hub Bearing (Driver Side) |
||
| 7 |
Q43060
Circlip
|
||
| 8 |
DA3501133
Front Wheel Hub Grease Seal 1
|
||
| 9 |
DA3501131
Steering Knuckle (Driver Side)
|
||
| 10 |
Q387C10
Thin Hexagon Slotted Nut - M10*1.25
|
||
| 11 |
Q40310
Spring Washer - M10
|
||
| 12 |
DA2901118 Suspension Ball Joint |
||
| 13 |
Q43132 External Circlips D0=32 |
||
| 14 |
Q5002528
Cotter Pin
|
||
| 15 |
Q33008 Hexagon Flange Lock Nut - M8×1.25 |
||
| 16 |
DC3504015 Torsion Spring |
||
| 17 |
DA3504008 Brake Pedal Bushing |
||
| 18 |
DC3504014
Clevis Pin (Pedal)
|
||
| 19 |
Q340B08
Type-1 Hexagon Nut - M8
|
||
| 20 |
Q150B0835
Hexagon Head Bolt - M8×35
|
||
| 21 |
DC3504010
Brake Pedal Assembly
|
||
| 22 |
Q5002518
Cotter Pin
|
||
| 23 |
Q5100820
Clevis Pin
|
||
| 24 |
Q1840870
Hexagon Flange Bolt - M8×70
|
||
| 25 |
Q1840830
Hexagon Flange Bolt - M8×1.25×30
|
||
| 26 |
DA3502111
Rear Wheel Hub
|
||
| 27 |
DA3502120
Brake Rotor (Rear Driver Side)
|
||
| 28 |
DA3502137 Pin End Cover |
||
| 29 |
DA3502136
Rear Axle Hub Pin Bushing
|
||
| 30 |
DA3502135
Rear Axle Hub Pin
|
||
| 31 |
DA3502138
45° Oil Nozzle
|
||
| 32 |
DA3502134 Rear Hub Oil Seal 2 |
||
| 33 |
DA3502139 Rear Wheel Hub Bearing Spacer Sleeve |
||
| 34 |
DA3502133 Rear Wheel Hub Oil Seal 1 |
||
| 35 |
DA3502132 Rear Wheel Hub Bearing |
||
| 36 |
DA3502131
Rear Axle Hub (Driver Side)
|
||
| 37 |
DA3502220
Brake Rotor (Rear Passenger Side)
|
||
| 38 |
DA3502231
Rear Axle Hub (Passenger Side)
|
||
| 39 |
DC3503000
Brake Assembly (Not Available)
|
||
| 39-1 |
DA3503010
Brake Caliper (Front Driver Side)
|
||
| 39-2 |
DA3503020
Brake Caliper (Front Passenger Side)
|
||
| 39-3 |
DA3503030
Brake Caliper (Rear Driver Side)
|
||
| 39-4 |
DA3503040
Brake Caliper (Rear Passenger Side)
|
||
| 40 |
DA3501231
Steering Knuckle (Passenger Side)
|
