KANDI Parts : GOLF CART : Kruiser 6P

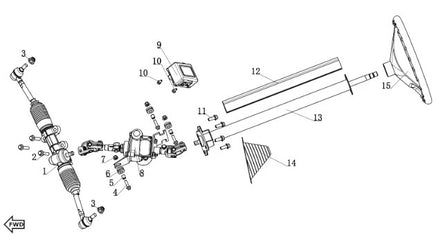

STEERING SYSTEM
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
M1204-3401010
Rack and Pinion Assembly
|
||
| 2 |
Q1851040TF6
Hexagon Flange Bolt - M10×1.25×40
|
||
| 3 |
Q33112T13F6
Hexagon Flange Lock Nut - M12×1.25
|
||
| 4 |
Q1840830T1F6
Hexagon Flange Bolt - M8×1.25×30
|
||
| 5 |
M1205-3404022
Steering Transmission Shaft Fastening Bushing
|
||
| 6 |
M1205-3404021 Shaft Rubber Sheath |
||
| 7 |
Q33108T2F6 Hexagon Flange Lock Nut - M8×1.25 |
||
| 8 |
M1205-3404020 Electric Power Steering Transmission Shaft Assembly |
||
| 9 |
M1205-3404025
Power Assist Steering Controller Assembly
|
||
| 10 |
Q1840612T1F33
Hexagon Flange Bolt - M6×1×12
|
||
| 11 |
Q1851025TF6
Hexagon Flange Bolt - M10×1.25×25
|
||
| 12 |
M1203-5006612 Bushing |
||
| 13 |
M1203-3404010
Steering Column Assembly
|
||
| 14 |
M1203-5006611
Steering Column Boot
|
||
| 15 |
M1204-3402020 Steering Wheel |
