Kandi Innovator E10K UTV Frame Without Bent Pipe Assy

$399.00
SKU: DC5013000

KANDI Parts : UTV : Innovator e10K

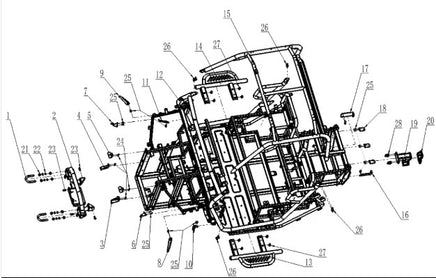

FRAME WITHOUT BENT PIPE ASSEMBLY

Ref# Part Number
1

DC5013000



Front Bumper Assembly



2

DC2803092



Tow D-Ring



3

Q340B16



Hexagon Nut



4

Q40416



Lightweight Spring Washer



5, 6

Q1841025



Hexagon Flange Bolt - M10×25



7

DC5010000

Frame Assembly

8

DC5018001A



Upper Bracket (Front Bumper Upper Trim)



9a

DC5018054



Lower Bracket (Front Bumper Upper Trim)



9b

DC5018055



Lower Bracket (Front Bumper Upper Trim)

(Symmetrical Parts)



10a

DC5017000



Running Board (Driver Side)



10b

DC5017100



Running Board (Passenger Side)



11

Q1841225

Hexagon Flange Bolt

12a

DC5512167



Front Fender Mounting Bracket (Driver Side)



12b

DC5512166



Front Fender Mounting Bracket (Passenger Side)



13

Q1840630

Hexagon Flange Bolt

14

DC5512168



Front Fender Trim Bracket (Driver and Passenger Sides)



15

Q1840630

Hexagon Flange Bolt


16

Q218B1025



Allen Head Screw



17

DC5700500



Roof Frame Assembly



18a

DC5018046



Lower Bracket (Rear Bumper, Driver Side)



18b

DC5015058

Lower Bracket (Rear Bumper, Passenger Side)

19

Q1840630

Hexagon Flange Bolt


20

DC5016000



Trailer Hitch Receiver Assembly



21

Q1841025



Hexagon Flange Bolt - M10×25



22

DC5018045



Upper Bracket (Rear Bumper)



23

Q1840620

Hexagon Flange Bolt

24

Q32006

Hexagon Flange Nut

14- day return policy. Customer is responsible for return shipping and 35% restocking fee. Merchandise must be un-used or refund will not be processed. Some parts may be out of stock or on backorder, if this happens you will be notified via contact method you choose at checkout.**
