KANDI Parts : UTV : Innovator e10K

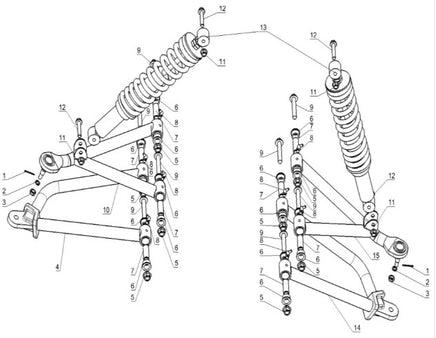

FRONT SUSPENSION
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
Q5002528
Cotter Pin
|
||
| 2 |
Q40310 Spring Washer D=10 |
||
| 3 |
Q387C10
Thin Hexagon Slotted Nut - M10*1.25
|
||
| 4 |
DC2901200
Front Lower Swing Arm Assembly (Driver Side)
|
||
| 5 |
Q33112
Hexagon Flange Locking Nut - M12×1.25
|
||
| 6 |
DC2901117
Nylon Bushing
|
||
| 7 |
DC2901116 Swing Arm Pin Shaft |
||
| 8 |
DA3502138
45° Oil Nozzle
|
||
| 9 |
Q1851275
Hexagon Flange Bolt - M12×1.25×75
|
||
| 10 |
DC2901100 Front Upper Swing Arm Assembly (Driver Side) |
||
| 11 |
Q33010
Hexagon Flange Lock Nut
|
||
| 12 |
Q1841055 Hexagon Flange Bolt |
||
| 13 |
DC2905000 Front Shock Absorber Assembly |
||
| 14 |
DC2901400
Front Lower Swing Arm Assembly (Passenger Side)
|
||
| 15 |
DC2901300
Front Upper Swing Arm Assembly (Passenger Side)
|
