KANDI Parts : UTV : Innovator e10K

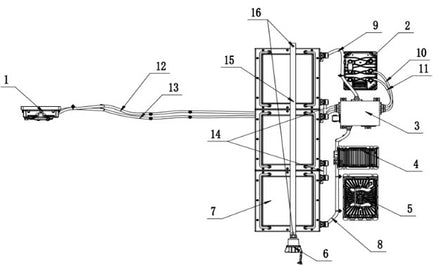

HIGH VOLTAGE SWITCHGEAR
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
DC2105030
Positive Wire Harness 1 (Motor Controller)
|
||
| 2 |
DC2103310
Motor Controller (Front)
|
||
| 3 |
DC2101200
Battery (Lithium)
|
||
| 4 |
DC2105060
Negative Wire Harness 2 (Motor Controller)
|
||
| 5 |
DC2105050
Positive Wire Harness 2 (Motor Controller)
|
||
| 6 |
DC2107020
AC Slow-Charging Socket Assembly
|
||
| 7 |
DC2107701
2kW Charger
|
||
| 8 |
DC2105010
Positive Wire Harness (Battery)
|
||
| 9 |
DC2105070
Battery Series Wire Harness
|
||
| 10 |
DC3723100
DC to DC Converter
|
||
| 11 |
DC2109200 High Voltage Control Box |
||
| 12 |
DC2105020
Negative Wire Harness (Battery)
|
||
| 13 |
DC2103320
Motor Controller (Rear)
|
||
| 14 |
DC2105040
Negative Wire Harness 1 (Motor Controller)
|
||
| 15 |
DC2101302
Battery Hold Down Cross Bar
|
||
| 16 |
DC2101301
Battery Hold Down Fastening Rod
|
||
| 17 |
DA2107411
Charging Cable Assembly
|
