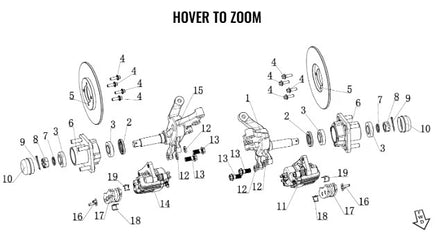

FRONT BRAKES
| Ref# | Part | ||
|---|---|---|---|
| 1 |
M6206-3001015
Knuckle and Spindle Assembly (Front Driver Side)
|
||
| 2 |
M6203-3001019 Grease Seal |
||
| 3 |
M6203-3001016 Bearing |
||
| 4 |
Q1800820TF3
Hexagon Serrated Flange Bolt - M8×1.25×20
|
||
| 5 |
M6204-3001020
Brake Rotor
|
||
| 6 |
M6203-3001017
Hub Assembly
|
||
| 7 |
M6203-3001018 Washer |
||
| 8 |
Q38312TF3 Slotted Hexagon Nut - M20×1.5 |
||
| 9 |
Q5000436
Cotter Pin
|
||
| 10 |
M6203-3001021
Hub Assembly End Cap
|
||
| 11 |
M6204-3501010 Front Brake Caliper (Driver Side, Brake Pads Not Included) |
||
| 12 |
Q40312F6 Spring Washer - M12 |
||
| 13 |
Q151B1230TF6 Hexagon Bolt - M12×1.25×30 |
||
| 14 |
M6204-3502010 Front Brake Caliper (Passenger Side, Brake Pads Not Included) |
||
| 15 |
M6206-3001025 Knuckle and Spindle Assembly (Front Passenger Side) |
||
| 16 |
M6204-3501023 Brake Caliper Spring Clip 1 |
||
| 17 |
M6204-3501021 Brake Pads (1 Set) |
||
| 18 |
M6204-3501024 Brake Caliper Spring Clip 2 |
||
| 19 |
M6204-3501025 Brake Caliper Spring Clip 3 |
