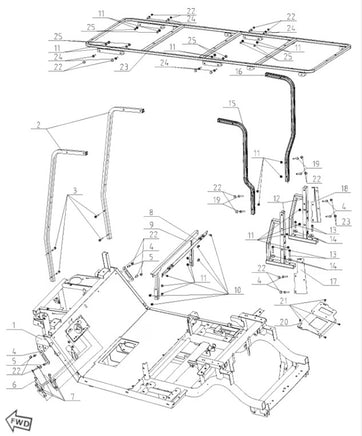

GOLF CART : Kandi Kruiser Pro 4 Passenger A & B Models
FRAME
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
M1124-2801010 Frame Assembly |
||
| 2 |
M1224-2801411
A-Pillar PRO
|
||
| 3 |
Q1840840T1F6
Hexagon Flange Bolt - M8×1.25×40
|
||
| 4 |
M1204C-5005115
Side Beam Decorative Metal Accent
|
||
| 5 |
Q1840820T1F6
Hexagon Flange Bolt - M8×1.25×20
|
||
| 6 |
M1224-2801360
Steering Column Connection Bracket
|
||
| 7 |
Q1851025TF6
Hexagon Flange Bolt - M10×1.25×25
|
||
| 8 |
M1124A-2800310
Seat Hinge Beam Assembly
|
||
| 9 |
M1104-2800320
Seat Beam Assembly
|
||
| 10 |
Q1840816T1F6
Hexagon Flange Bolt - M8×1.25×16
|
||
| 11 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
||
| 12 |
M1224-2801430
B-Pillar Mounting Bracket
|
||
| 13 |
Q1840860T1F33
Hexagon Flange Bolt - M8×1.25×60
|
||
| 14 |
M1203-2801436
Washer - M8×4×40
|
||
| 15 |
M1224-2801421
B-Pillar PRO (Driver Side)
|
||
| 16 |
M1224-2801422
B-Pillar PRO (Passenger Side)
|
||
| 17 |
M1224-2801911
Backrest Mounting Bracket (Driver Side)
|
||
| 18 |
M1224-2801912
Backrest Mounting Bracket (Passenger Side)
|
||
| 19 |
Q1840850T1F6
Hexagon Flange Bolt - M8×1.25×50
|
||
| 20 |
M1104-2801551H Motor Controller Mounting Plate |
||
| 21 |
Q1840630T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 22 |
Q72606
Protection Cap - M6 Nut
|
||
| 24 |
Q1840845T1F6
Hexagon Flange Bolt - M8×1.25×45
|
||
| 25 |
Q72608
Protection Cap - M8 Nut
|
