Kandi Kruiser Pro 4P Forward Front Trim

$689.00

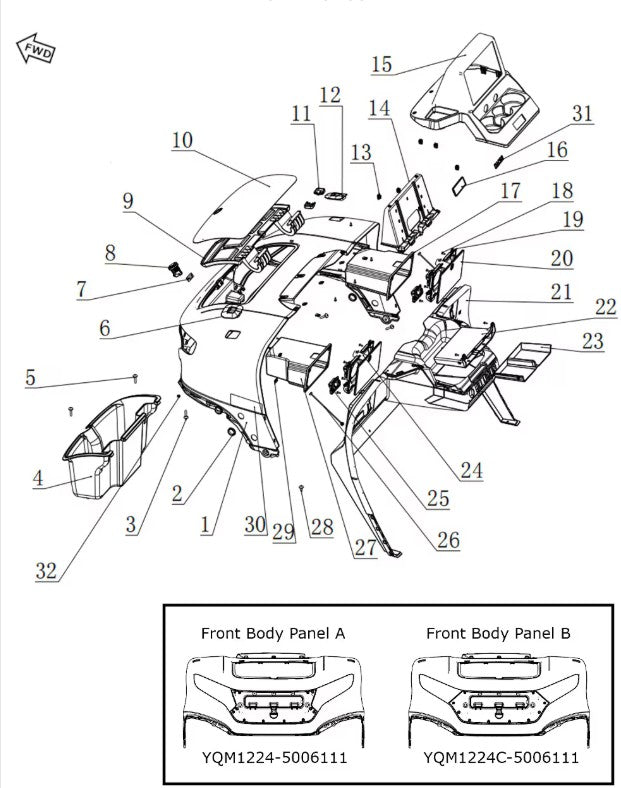

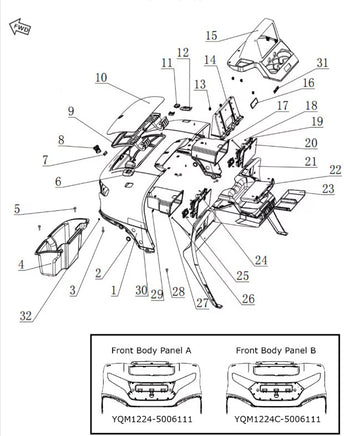

 GOLF CART : Kruiser 4P PRO Forward A & B Models

FRONT TRIM

Ref# Part Number
1

YQM1224-5006111



Front Body Panel A



1

YQM1224C-5006111



Front Body Panel B



2

M6203-8201003



Rubber Gasket



3

Q2140616T9F33



Phillips Pan Head Screw - M6×1×16



4

M1224-5006170



Front Trunk Liner



5

M1203-5006314



Phillips Round Head Screw - M6×1×30



6

M1224-5006113



A-Pillar Plastic Grommet (Driver Side)



7

M1224-5006118



Latch Catch Plate



8

M1224-5006115A



Push Button Latch



9

M1224-5006116



Front Trunk Lid Interior Assembly



10

YQM1224-5006112



Front Trunk Lid Outer Panel



11

M1224-5006117



Hinge Cover



12

M1224-5006114



A-Pillar Plastic Grommet (Passenger Side)



13

M1224-5006133

Metal Clip

14

M1224-5006135A



Instrument Panel Mounting Bracket
(10in Screen)



15

M1224-5006131A



Instrument Panel Cover with Cup Holders



16

M1224-5006132



KANDI Logo Base



17

M1224-5006152



Glove Box (Passenger Side)



18

Q2714213F33



Phillips Pan Head Self-Tapping Screw - ST4.2×13



19

M1224-5006123



Glove Box Door Interior Assembly



20

M1224-5006122



Glove Box Door Outer Panel



21

M1224-5006121



Instrument Panel Trim



22

M1224-5006141



Cell Phone Compartment



23

M1224-5006142



Cell Phone Compartment Non-Slip Mat



24

M1224-5006124



Push Button Latch (Glove Box)



25

M1224-5006126



Hinge Cover (Glove Box)



26

M1224-5006127



Door Cable (Glove Box)



27

M1224-5006151



Glove Box (Driver Side)



28

Q2734816F33



Phillips Truss Head Self-Tapping Screw - ST4.8×16



29

M1224-5006236

Spring Nut

30

FTH050

Red Reflective Sticker

31

M1124A-5006134



KANDI Logo



32

Q32006F33



Hexagon Flange Nut - M6×1



**14- day return policy. Customer is responsible for return shipping and 35% restocking fee. Merchandise must be un-used or refund will not be processed.**
