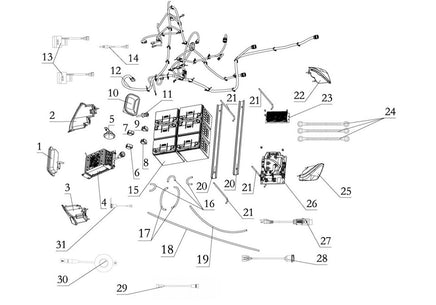

ELECTRICAL
Kandi Kruiser ( 2 & 4 Passenger Models)
| Ref# | Part Number | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 |
M1204-4121030 Spotlight |
||||||||
| 2 |
M1203-4121020 Head Light, Passenger |
||||||||
| 3 |
M1203-4121010 Head Light, Driver |
||||||||
| 4 |
M1204-2107010
Charger Assy 4P AGM
|
||||||||
| 4-1 |
M1204-2107050 Charger Main Output Line Assy |
||||||||
| 5 |
M1203-3721010 Horn |
||||||||
| 6 |
M1203-3792030 Spotlight Switch |
||||||||
| 7 |
M1203-3792040 Hazard Warning Switch |
||||||||
| 8 |
M1203-3792020 Hi/ Lo Beam Switch |
||||||||
| 9 |
M1203-3792010 Gear Switch |
||||||||
| 10 |
M1204-3820010 Meter Assy |
||||||||
| 11 |
M1203-3704010 Key Switch |
||||||||
| 12 |
M1204-4002010 Wiring Harness |
||||||||
| 13 |
M1203-3819010 Buzzer |
||||||||
| 14 |
L5201-4134010 Brake Light Switch |
||||||||
| 15 |
M1203-2101010
AGM Battery
|
||||||||
| 16 |
M1204-4005011 Battery Connecting Wire 1 |
||||||||
| 17 |
M1204-4005012 Battery Connecting Wire 2 |
||||||||
| 18 |
M1204-4005014 Battery Connecting Wire 4 |
||||||||
| 19 |
M1204-4005013 Battery Connecting Wire 3 |
||||||||
| 20 |
M1203-2101111 Battery Hold Down Cross Bar |
||||||||
| 21 |
M1203-2101023 J-Bolt |
||||||||
| 22 |
M1203-4133020 Tail Light, Passenger |
||||||||
| 23 |
M1203-2110010 DC to DC Converter (Call First) |
||||||||
| 24 |
M1204-4005020 Motor Wire |
||||||||
| 25 |
M1203-4133010 Tail Light, Driver |
||||||||
| 26 |
M1204-2142010 Motor Controller Assembly |
||||||||
| 27 |
M1204-2107020 Charging Cable |
||||||||
| 28 |
M1204-2107030 Charging Socket |
||||||||
| 29 |
M1204-2107040 Charging Indicator |
||||||||
| 30 |
M1203-3774010 Turn Signal Combination Switch |
||||||||
| 31 |
M1203-3792050 USB Output Socket |
||||||||
|
M1204-WS Warning Sticker set |
|
||||||||
| A2Q |
M1204-FR Flasher Relay |
||||||||
|
M1204L-4002110
License Plate Extension Cable (LSV Cable) |
|||||||||
|
Q2140512T1F33
Phillips Pan Head Screw - M5×0.8×12 |
|||||||||
|
M1203-keyblank Key Blank X69 YH37 |
|||||||||
|
M1204FD-3792060
Winch Switch |
|||||||||
|
M1204-Fuse
40A Fuse |
|||||||||
|
M1204-3504020
Accelerator Pedal Sensor |
|||||||||
|
M1104FD-4002310
Wiring, Winch Button |
|||||||||
