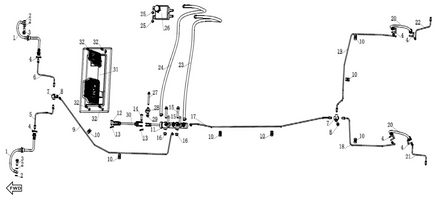

HYDRAULIC BRAKE CONTROL
| Ref# | Part Number | ||
|---|---|---|---|
| 1 |
3506020YX-101
Brake Hose Assembly (Front)
|
||
| 2 |
3506117YX-101 Sealing Gasket |
||
| 3 |
3506116YX-101 Hollow Bolt |
||
| 4 |
3506114YX-101
Hose Clamp
|
||
| 5 |
M1204-3506031 Brake Line (Front Driver Side) |
||
| 6 |
M1204-3506041
Brake Line (Front Passenger Side)
|
||
| 7 |
L5201-3506115
Tee Adapter
|
||
| 8 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
||
| 9 |
M1204-3506051 Brake Line (Connection Line 1) |
||
| 10 |
M1204-3506113
Brake Line Mounting Clip
|
||
| 11 |
L5201-3510010A
Brake Master Cylinder Assembly
|
||
| 12 |
Q510B0822F3
Clevis Pin - 8×22
|
||
| 13 |
Q50108F3
Cotter Pin
|
||
| 14 |
Q510B0830F3
Clevis Pin - 8×30
|
||
| 15 |
Q1851060TF6
Hexagon Flange Bolt - M10×1.25×60
|
||
| 16 |
Q33110T13F6
Hexagon Flange Lock Nut - M10×1.25
|
||
| 17 |
M1205-3506052 Brake Line (Connection Line 2) |
||
| 18 |
M1204-3506032 Brake Line (Rear Driver Side) |
||
| 19 |
M1204-3506042 Brake Line (Rear Passenger Side) |
||
| 20 |
3506070YX-101
Brake Hose Assembly (Rear)
|
||
| 21 |
M6204-3506050
Brake Line (Rear Driver Side)
|
||
| 22 |
M6204-3506060
Brake Line (Rear Passenger Side)
|
||
| 23 |
M1204-3510021 Brake Fluid Reservoir Hose 1 |
||
| 24 |
M1204-3510022
Brake Fluid Reservoir Hose 2
|
||
| 25 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
||
| 26 |
L5201-3510020 Brake Fluid Reservoir |
||
| 27 |
Q1840860T1F33
Hexagon Flange Bolt - M8×1.25×60
|
||
| 28 |
DM6204-3510020
Connecting Plate for Brake Master Cylinder
|
$20.58 | |
| 29 |
Q33008T2F33
Hexagon Flange Lock Nut - M8×1.25
|
||
| 30 |
M1204-3510015 Connecting Rod for Brake Master Cylinder |
||
| 31 |
M1204-3504010HX Combined Pedal Assembly |
||
| 32 |
Q218B0825T1F33
Allen Head Screw - M8×1.25×25
|
