UTV : Lucky T9

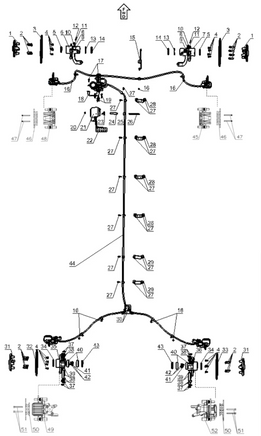

BRAKING SYSTEM
| Ref# | Part | ||
|---|---|---|---|
| 1 |
DA3501111
Front Wheel Hub
|
||
| 2 |
DA3501112
Wheel Hub Bolt - M12×1.25
|
||
| 3 |
DA3501120
Front Brake Rotor
|
||
| 4 |
DA3501121
Brake Rotor Bolt - M8×20
|
||
| 5 |
DA3501134
Front Wheel Hub Grease Seal 2
|
||
| 6 |
DA3501131
Steering Knuckle (Driver Side)
|
||
| 7 |
DA3501231
Steering Knuckle (Passenger Side)
|
||
| 8 |
DA2901140
Suspension Ball Joint
|
||
| 9 |
Q43134
External Retaining Ring
|
||
| 10 |
Q40310
Spring Washer - M10
|
||
| 11 |
Q381C10
Type 1 Slotted Hexagon Nut - M10×1.25
|
||
| 12 |
Q5002528
Cotter Pin
|
||
| 13 |
Q43060
Circlip
|
||
| 14 |
DA3501133
Front Wheel Hub Grease Seal 1
|
||
| 15 |
DA3506005
Brake Line Installation Bracket 1 Assembly
|
||
| 16 |
Q33006
Hexagon Flange Lock Nut - M6
|
||
| 17 |
Q1840620
Hexagon Flange Bolt - M6×20
|
||
| 18 |
DC5021007
Oil Reservoir Bracket
|
||
| 19 |
Q1840830
Hexagon Flange Bolt - M8×1.25×30
|
||
| 20 |
Q33008 Hexagon Flange Lock Nut - M8×1.25 |
||
| 21 |
DA3504002
Brake Pedal Bracket
|
||
| 22 |
DA3504020
Brake Pedal Arm Assembly
|
||
| 23 |
DA3504021
Torsion Spring
|
||
| 24 |
DA3504009
Brake Pedal Pin
|
||
| 25 |
DA3504008 Brake Pedal Bushing |
||
| 26 |
Q1840890
Hexagon Flange Bolt - M8×90
|
||
| 27 |
Q1840616
Hexagon Flange Bolt - M6×16
|
||
| 28 |
DA3506007
Brake Line Installation Bracket 2 Assembly
|
||
| 29 |
DA3506009
Brake Line Installation Bracket 3 Assembly
|
||
| 30 |
Q218B0630
Allen Head Screw - M6×25
|
||
| 31 |
DA3502111
Rear Wheel Hub
|
||
| 32 |
DA3502120
Brake Rotor (Rear Driver Side)
|
||
| 33 |
DA3502220
Brake Rotor (Rear Passenger Side)
|
||
| 34 |
DA3502134 Rear Hub Oil Seal 2 |
||
| 35 |
DA3502131
Rear Axle Hub (Driver Side)
|
||
| 36 |
DA3502231
Rear Axle Hub (Passenger Side)
|
||
| 37 |
DA3502137 Pin End Cover |
||
| 38 |
DA3502136
Rear Axle Hub Pin Bushing
|
||
| 39 |
DA3502135
Rear Axle Hub Pin
|
||
| 40 |
DA3502132 Rear Wheel Hub Bearing |
||
| 41 |
DA3502139 Rear Wheel Hub Bearing Spacer Sleeve |
||
| 42 |
Q700B08
Straight-Through Grease Nozzle
|
||
| 43 |
DA3502133 Rear Wheel Hub Oil Seal 1 |
||
| 44 |
DA3503000
Brake Assembly
|
||
| 45 |
DA3503011
Brake Caliper with Piston Assembly (Front Driver Side)
|
||
| 46 |
DA3503012
Front Brake Pad-UTV
|
||
| 47 |
DA3503013
Front Brake Pad Guide Pin
|
||
| 48 |
DA3503021
Brake Caliper with Piston Assembly (Front Passenger Side)
|
||
| 49 |
DA3503031
Brake Caliper with Piston Assembly (Rear Driver Side)
|
||
| 50 |
DA3503032
Rear Brake Pad-UTV
|
